Energy Diagram for an Electron

The electron stays in the atom. Thus, its total energy will be negative. (See Energy Diagrams for Atoms.) This energy diagram represents both the electron’s total and potential energies.

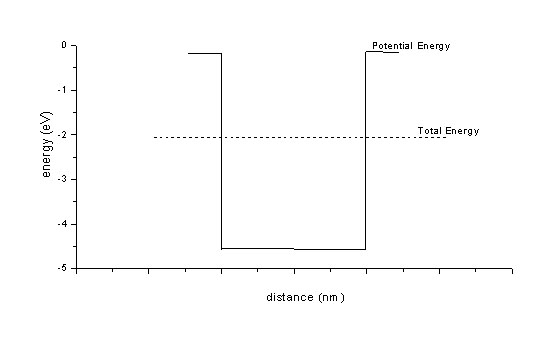

The potential and total energies for an electron in a model of an atom.
